Sherline & Taig Brushless Motor Upgrade 1,200 Watt CNC Controllable

+11

+10

Sherline & Taig Brushless Motor Upgrade 1,200 Watt CNC Controllable

Store/Spindle Motors Upgrade

$797.00

Sold out

GlockCNC Ribbed Pulley Options

2 Step 5 Rib Pulley (+$49.00)

Extra Rib Belt 170mm (+$16.00)

Sherline Belt Type Pulley

3 Step High Speed 2L Groove Pulley (belt to use first two steps included, long belt for 3rd extra) (+$49.00)

Extra 2L Groove Belt 160 Size (+$16.00)

2L Long 210 Size Belt For High Speed for 3rd Groove (+$16.00)

Other Options

Manual Motor Control - Speed/Brake/Reverse (+$45.00)

220v Option (+$29.00)

Delete Mounts (-$35.00)

Sherline & Taig Brushless Motor Upgrade 1,200 Watt CNC Controllable

Store/Spindle Motors Upgrade

Product Details

Quick Note Because of High Demand --- We are now accepting new orders for the next shipment. On average, it's taking about 3 months to get our parts orders in (we keep selling out and the supply chain is still slow). To keep things fair, we can only hold "spots" in the next order for paid customers. In other words, the longer a person waits to order, the more likely they will miss out on getting in on the current order batch. This is because, just like the previous order, the incoming order will likely sell out before we even get it! Thanks, James...

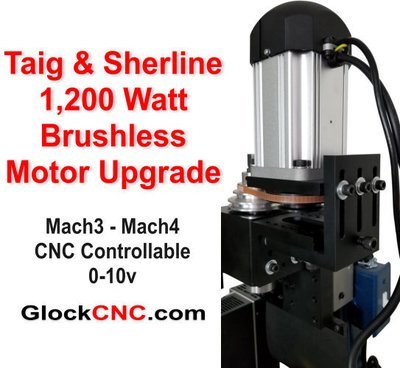

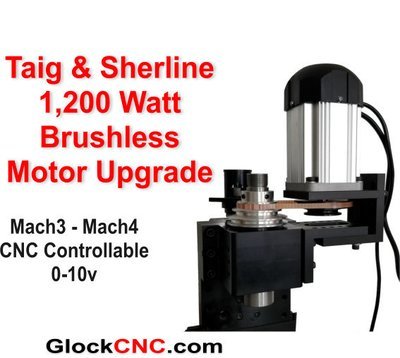

Looking for a Sherline or Taig motor upgrade? This is for you if you're looking for ultimate power. Our typical customers for the 1,200 Watt are commercial and high end hobbyist. Like our other brushless motor, it produces high torque at any RPM. This is because the brushless driver will feed any needed power to maintain RPM. This is a great Industrial Continuous Duty Brushless Motor for your lathe or mill. The motor RPM is 5,400. Of course, your final spindle RPM will depend upon your pulley ratio.

What you get:

1,200 Watt High Torque Brushless Continuous Duty Motor (fan cooled)

CNC controllable through 0-5v signal signal or 0-10v using included resistors, PWM using widely available PWM to 0-5v adapter

About the same weight as stock motor, but with much more power

No modifications needed for Sherline or Taig to mount (or course, it mounts directly to our Heavy Duty Headstocks as well).

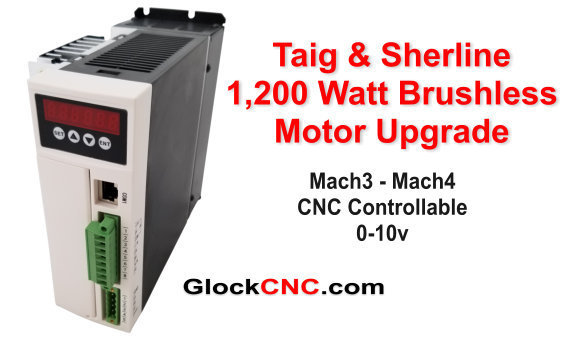

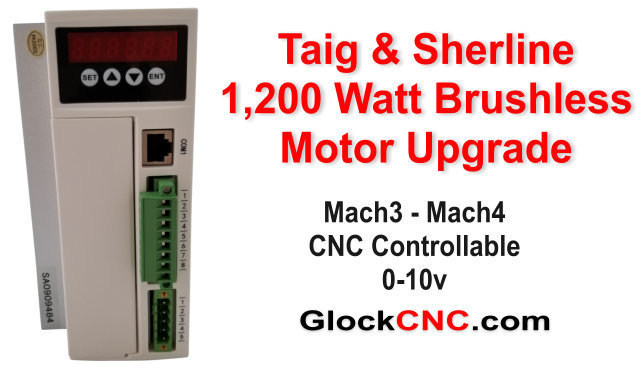

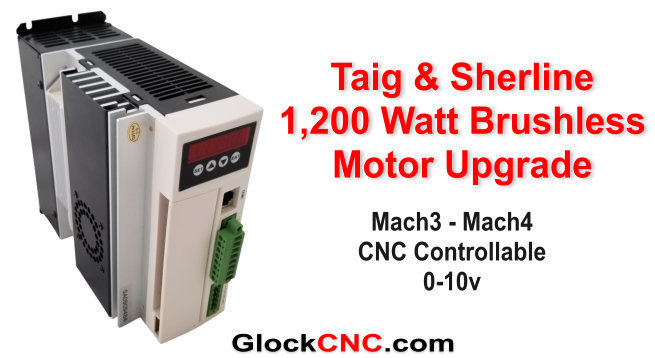

Brushless controller with 5 digit motor tachometer showing motor speed

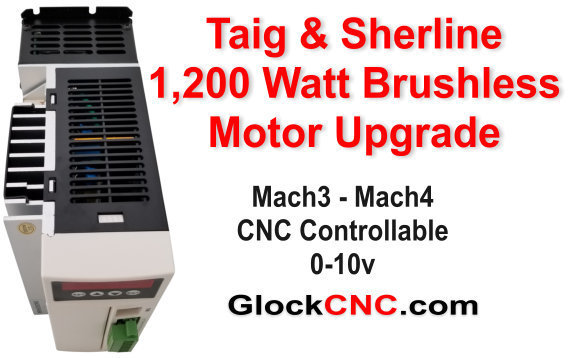

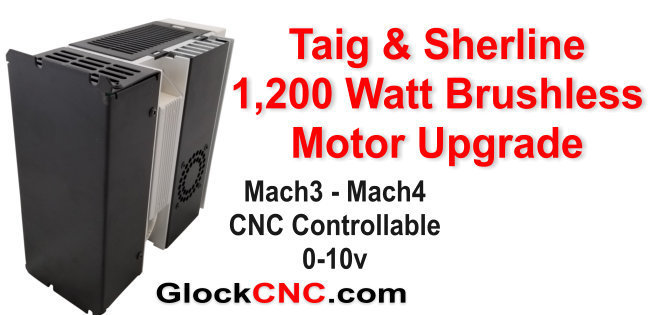

Remote wired motor driver

Motor RPM 5,400

Motor is reversible through the controller

110v or 220 volt

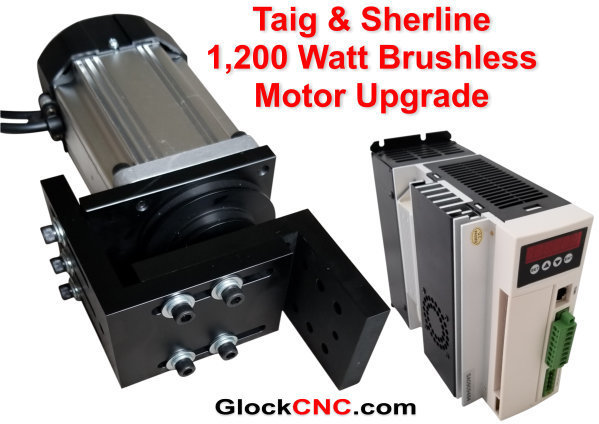

Kit includes: Brushless Motor + Controller, Mounts & Cabling

To use the largest groove on the pulley, you will want to also order the 210 size belt

Fyi...Including the mounts, here are the weight numbers;

Taig OEM mill motor with mounts: 12lb 7oz

GlockCNC 1,200 watt with mounts: 9lb 12oz

GlockCNC 750 watt with mounts: 9lb 7oz

OPTIONS....

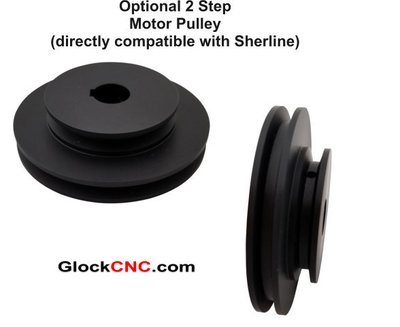

The pictured pulley with belt is optional because some like to use their own pulley. Shaft is 14mm with 5mm key

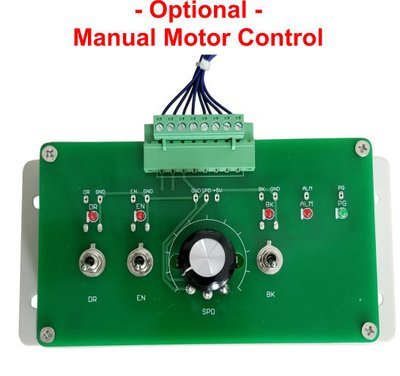

The optional control box features; Speed Control Knob, Direction, Engage, & Brake switches

(Headstocks in any pictures are sold separately)

Manual: 1200 Watt GlockCNC Manual

3 Step L Type Pulley Diameters: 1st 66mm, 2nd 54mm, 3rd 42mm
